TS-025

ISRAEL MAIN BATTLE TANK MERKAVA Mk.3D LATE LIC1/35



suite

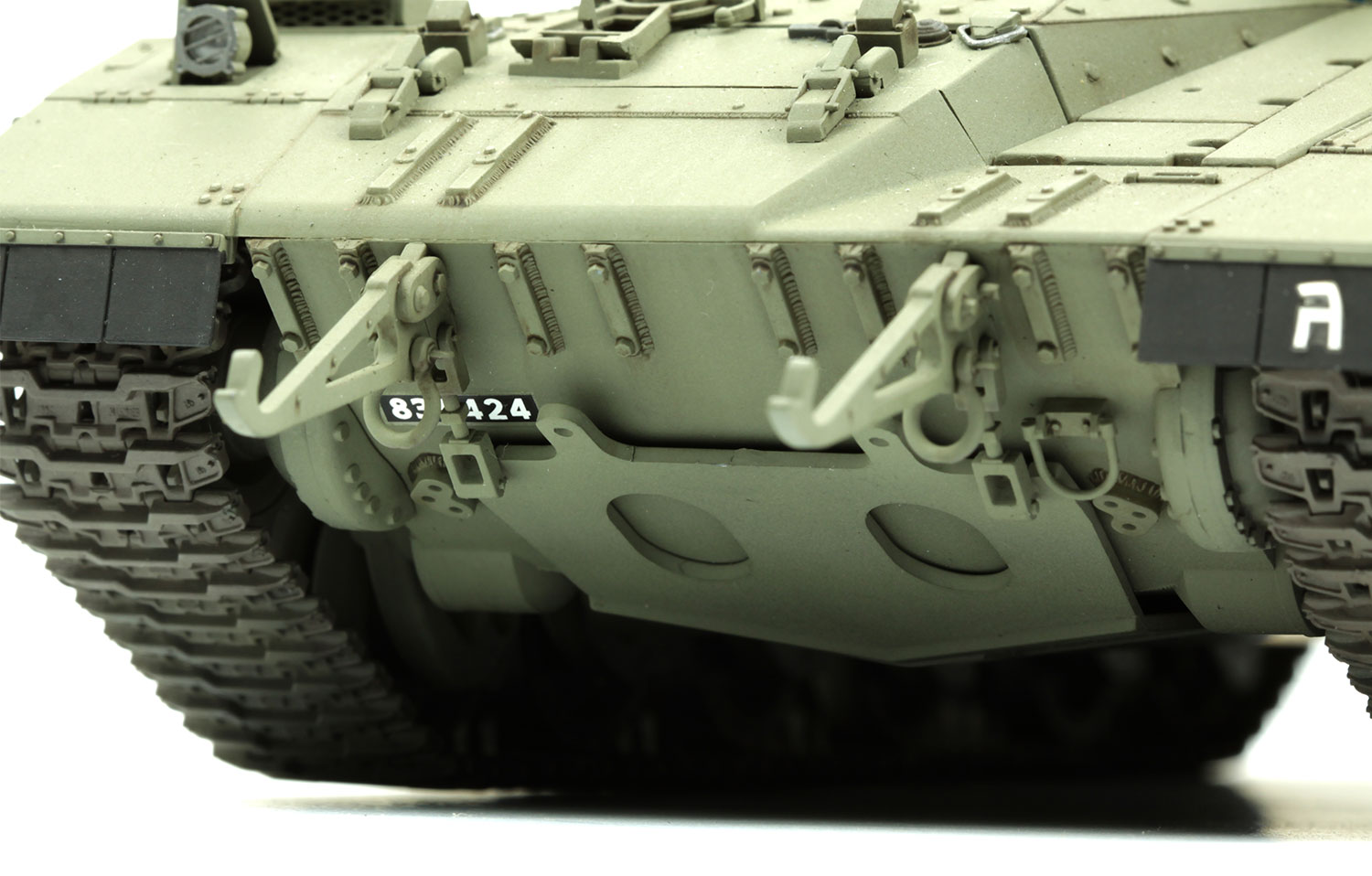

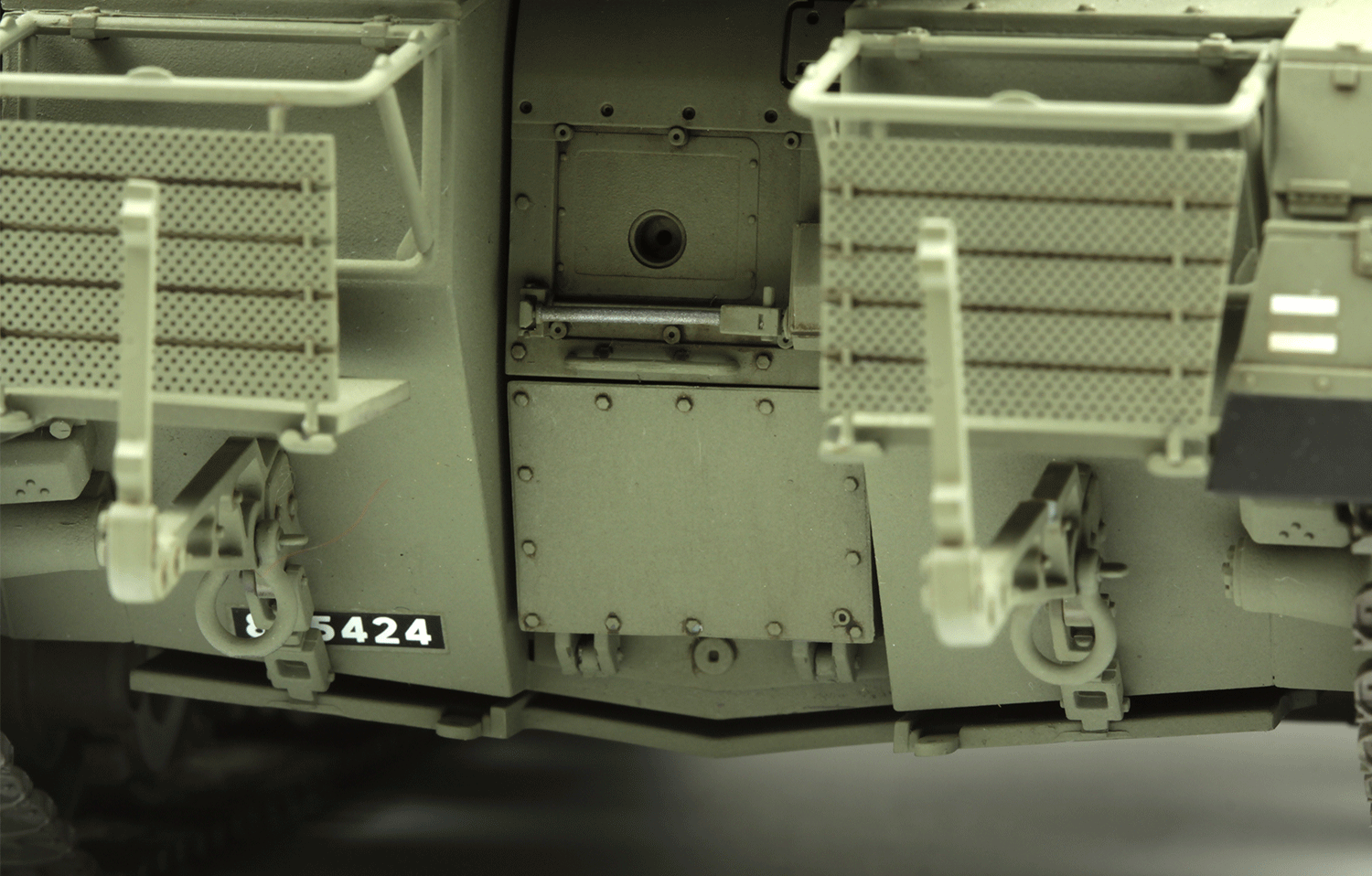

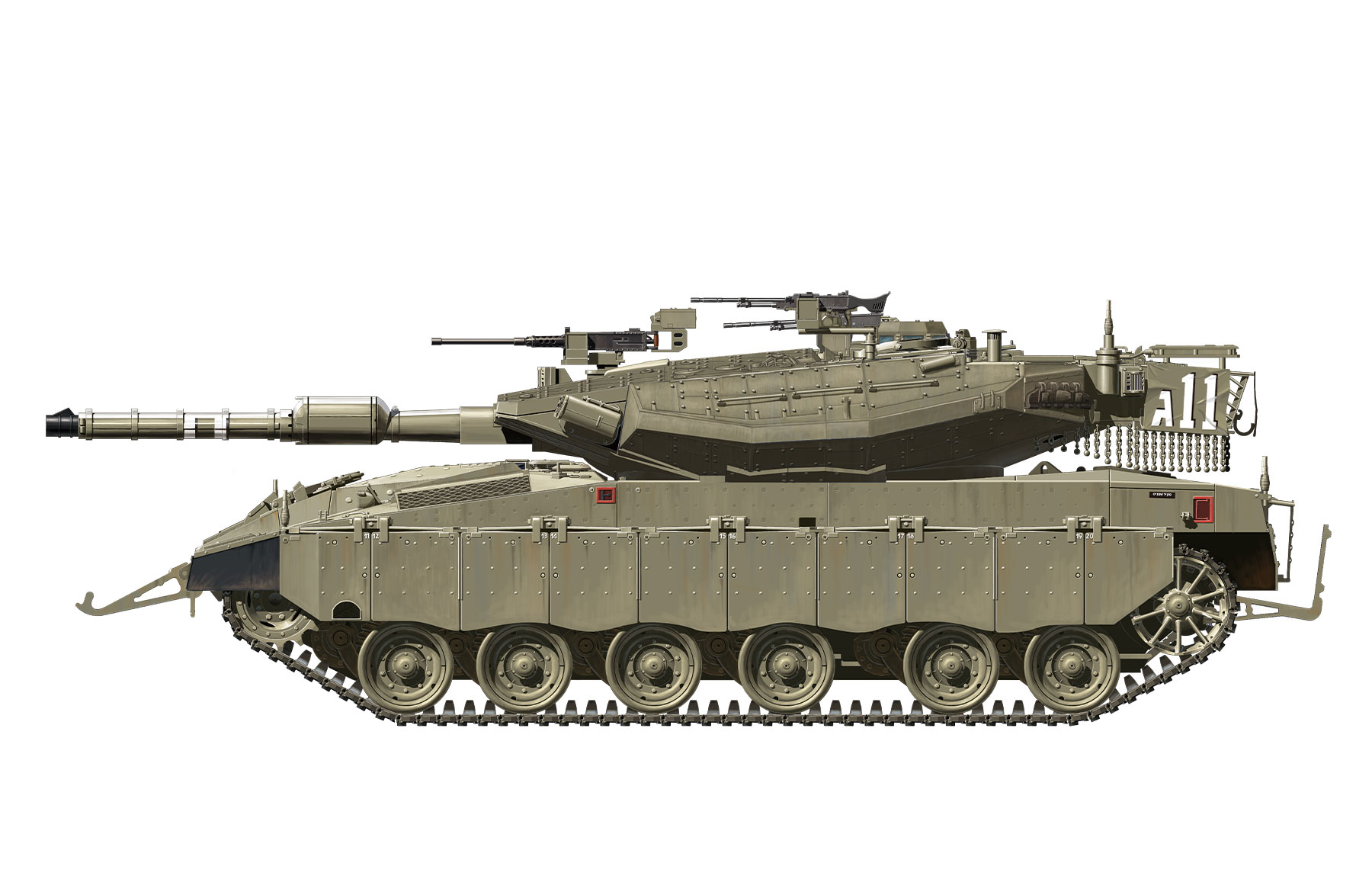

The Merkava Mk.3D tanks are in large service in the IDF both in regular brigades and reserved ones. It’s equipped with a 120mm smooth bore gun and advanced fire control system called BAZ (glaring lightning). A 1200hp air cooled engine, a new transmission and new heavy duty final drives are located in the front of the hull. The Merkava Mk.3D suspension is based on individual trailing arms suspended by rotary shock absorber and individual coil spring sets. It took action in the 2nd Lebanon War in 2006, Operation Cast Lead in the Gaza Strip in the winter of 2009, Operation Protective Edge in the summer of 2014 and many other security activities along the Israeli border. In order to operate the Merkava Mk.3D tank in anti-terror and LIC (low intensity conflict) roles in the Gaza Strip and in the South of Lebanon, more features are added to in the front of turret and armor on both sides of the Merkava Mk.3D tank, like a more advanced armor suit, front and rear towing horns for recovery and a under hull belly armor, as well as protection to the sights and lights.


KIT INFO

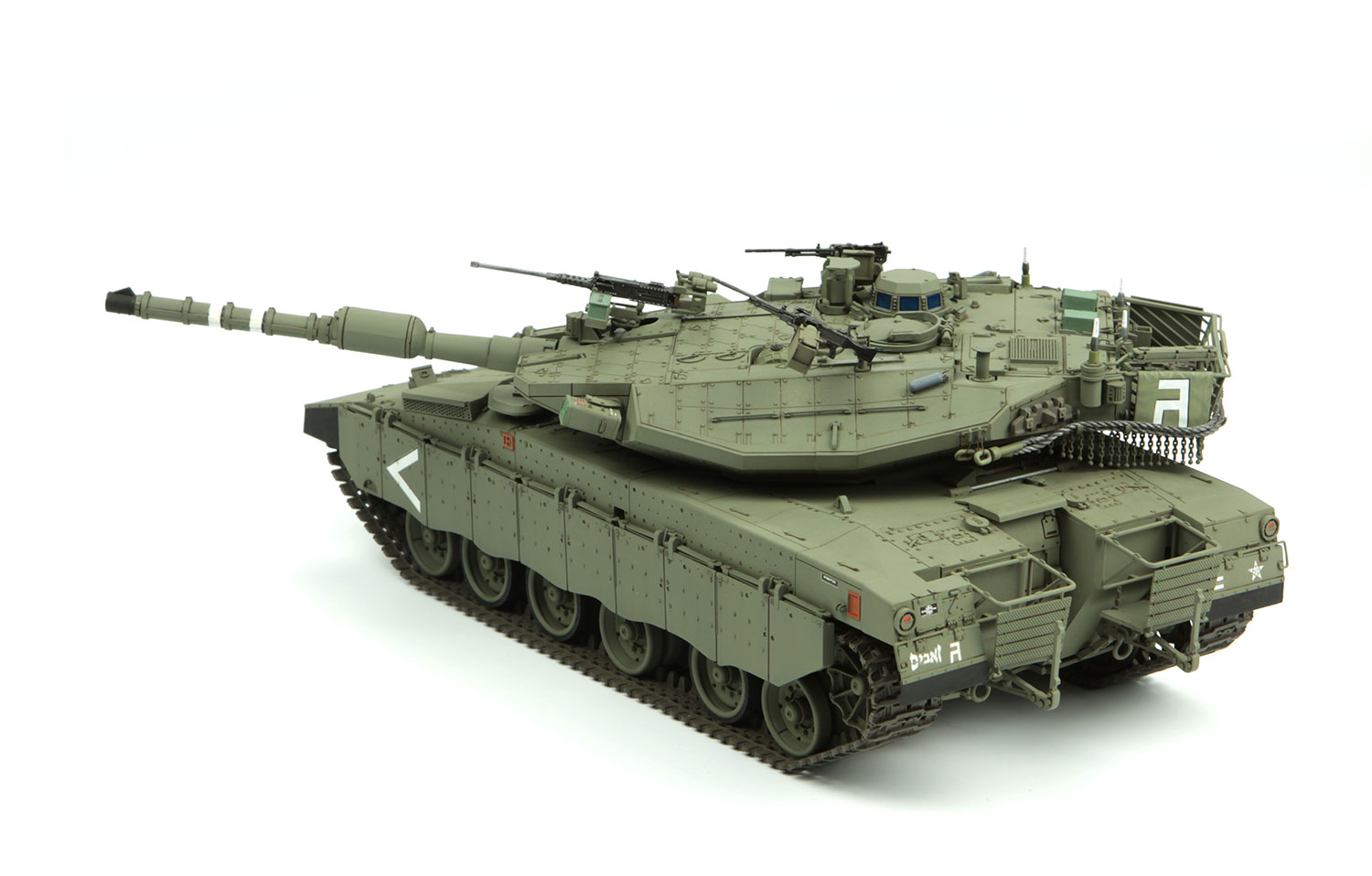

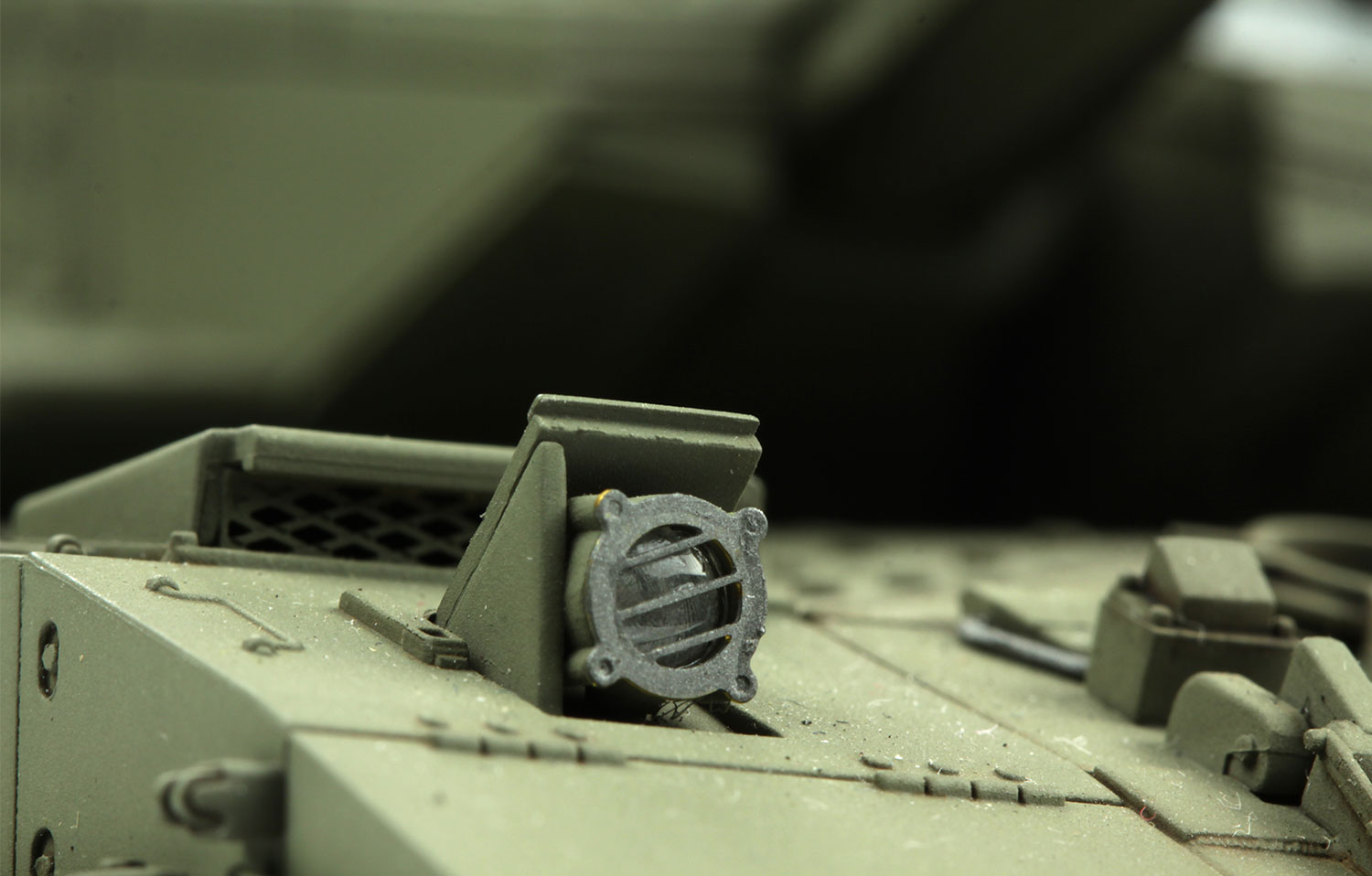

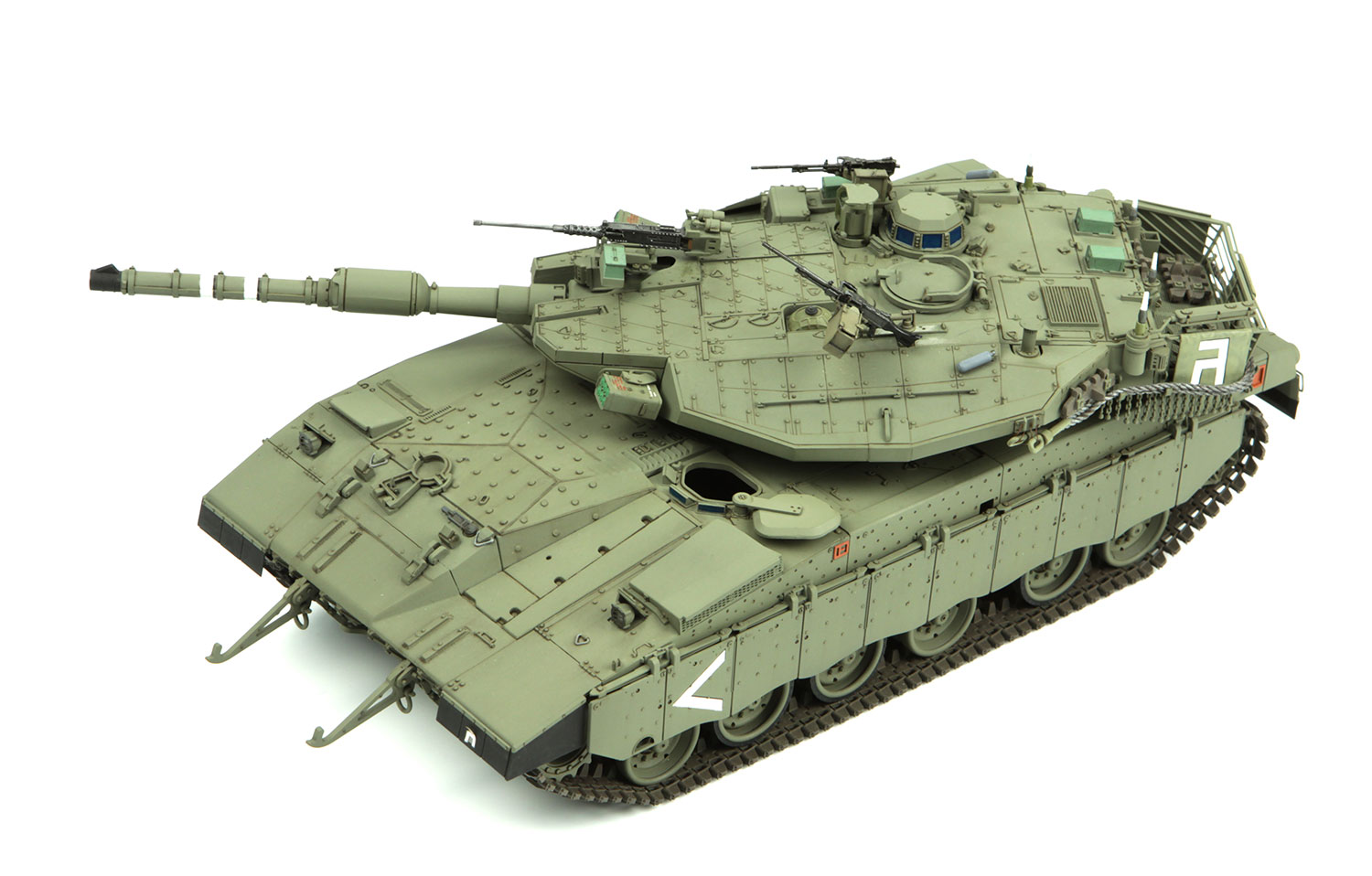

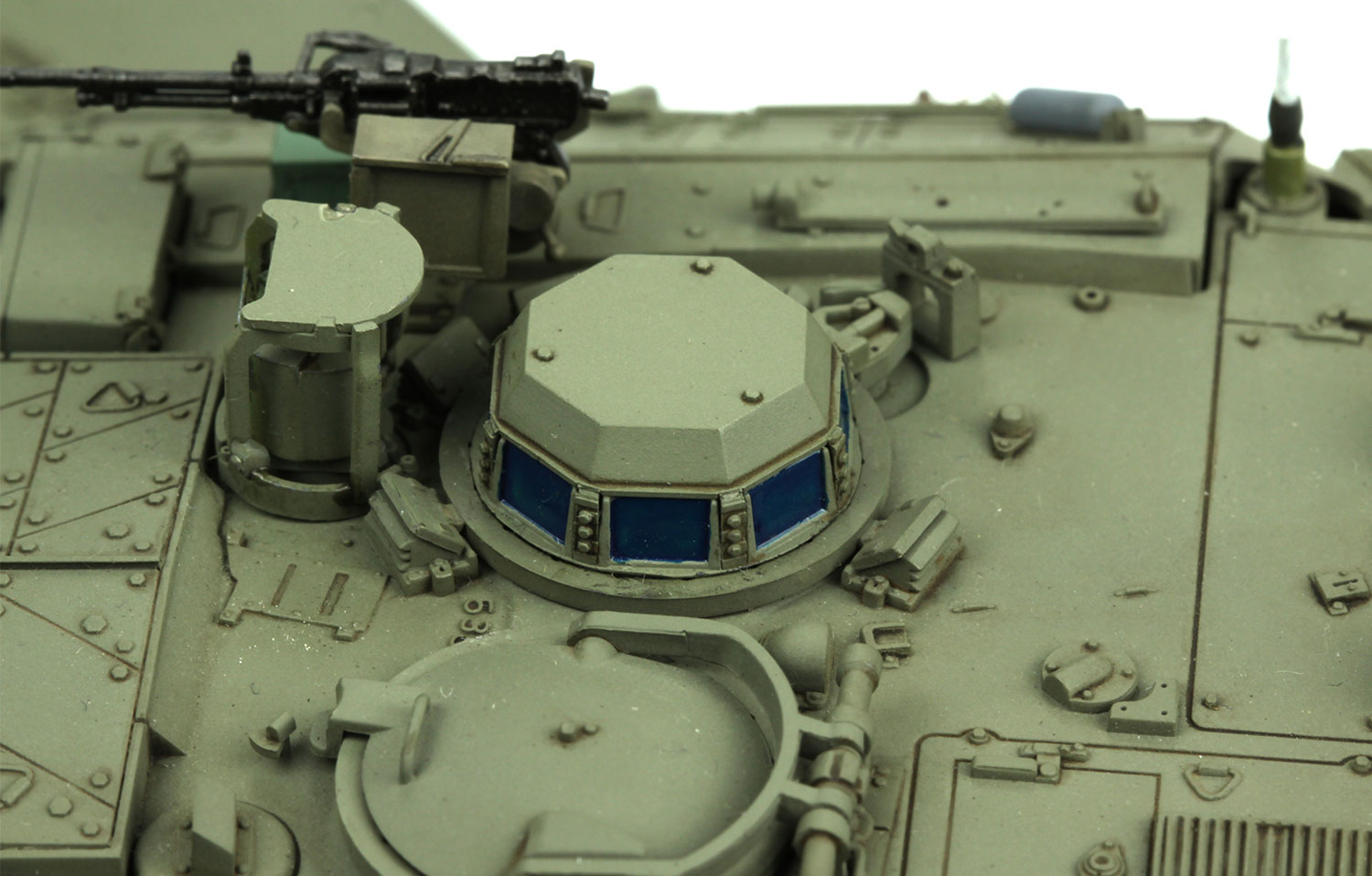

This 1/35 scale Israel Main Battle Tank Merkava Mk.3D Late LIC plastic model kit has the following features: all crew hatches are movable; road wheels with rubber tires and all-steel road wheels are offered; periscopes and lights are included; precision PE parts and two paint schemes are provided.

Length: 260mm   Width: 111mm


Manual

  • DownLoad
    TS-025PDFManual.pdf
